What is a Java agent?
Simply stated, a Java agent is a self-contained Java executable program of any size, located and placed under the control of a specific Domino server. Since Domino does not currently provide native Java development tools, you can develop the agent with any standard Java tool set. Then, within the same Notes user interface that you use to select and schedule other agents, you can specify and assemble the Java classes required to execute the Java agent.

Java agents, as described here, are developed explicitly for execution within Domino. They run with a Notes-supplied Java runtime, and within a Notes-supplied context. These agents normally do not have a user interface, but rely on the Notes user interface in the same way that other Notes agents do. They can access Notes databases directly, using Java Notes classes. Take a fresh look at Bob Balaban's article on "The Future of Notes and Java," published in Iris Today earlier this year, to better understand the relationship between Java and Notes. The Java Programmer's Guide shipped with Domino 4.6 is also a useful source of information on developing Java in Notes.

By contrast, Java applets, which can also be hosted within Domino, are generally written to be served up by any standard Web server. While Notes-supported Java applets do run under the Java run-time, they also run under browser-supplied runtimes. That is, a Java applet relies on Netscape Navigator or Internet Explorer to handle all client rendering and display. The context for locating, specifying and running an applet is defined in part by the browser and in part by the codebase parameter that is specified as part of an applet tag. Consequently, a Java applet hosted under Domino behaves exactly as it would when hosted by any Web server.

Finally, while Java agents gain direct access to Notes databases -- assuming security rights have been granted -- Java applets, like any Web-standard component, rely on URLs for access to documents. Of course, Java agents can also use URLs, which may be more convenient or efficient in a given situation.

Similarities between Java agents and LotusScript agents
The most significant difference between Java agents and LotusScript agents is that the latter are coded directly within the Notes integrated development environment, while the former, as already stated, are designed within a Java-specific environment (for instance, Symantec Cafe or Microsoft J++). Otherwise, Java agents and LotusScript agents are very similar. Both types of agents are executable programs that can carry out actions of arbitrary complexity, including the calling of other agents, before passing control back to the user at the interface level. They also:

• Employ the same Notes user interface paradigm for their creation and management. (For more information, see the recipe section below.)
• Pass parameters via fields within documents. (Note that Java applets, by contrast, pass parameters within the header that launches the applet itself.)
• Enable users to specify public sharing of agents.

Previously, a specific, named server executed a specific, named Notes agent. The Agent Manager service scheduled agents for execution when the agent's "machine name" matched the name of the current server. This had the virtue of greatly reducing potential replication conflicts between agents hosted on multiple servers.

However, because some developers expressed a need for hosting single agents on multiple servers, you can now specify "*" as the server name when you schedule an agent.

This eliminates the need to enable background agents on every server and the server name check when the $MachineName item contains this symbol. If you take advantage of this, consider the type of document modification activity assigned to such agents on each individual server to anticipate possible replication effects.

Implementing Java agents within Notes
Ideally, your Java agents should already be developed, compiled, and successfully tested before you import them into Notes. Once this is complete, the integration process itself is very simple. It consists of selecting Java as the agent type, specifying the base class of the agent, and importing the class files for that agent. Notes also makes it convenient to update agents with new files and/or to reorganize or delete obsolete class files.

First, select Java as the agent type
The programmer's pane has been slightly reorganized for this release. The Agent Window's "programming pane" now allows you to supply Java classes (in addition to LotusScript, simple actions and formulas) as the "code" for execution when the agent is run. When you select Java, you are presented with a dialog requesting the needed files for the agent.

Second, specify the base class

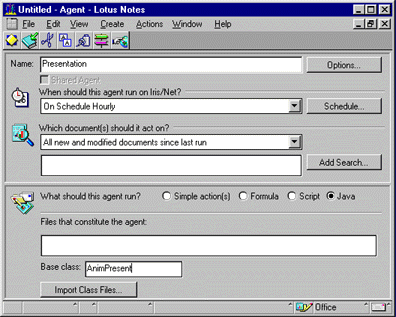

When you have selected the Java agent radio button, the next step is to specify the base class for the agent. In Java, the base class is the one that will execute when the agent is launched. Here, we are defining a Java agent ("Presentation") that will manipulate documents in an online Web presentation. We have entered the name of the base class ("AnimPresent.Class") in its field. Notes will assume the .class extent for the class named.



If the base class field is empty, it is populated with the name of the first class in the list (the first file with a .class extent).

Third, define the agent files needed.

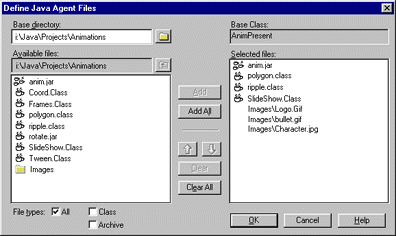

Clicking "Import Class Files" displays a dialog box almost identical to the one also used to locate Java applet files:



Follow these steps to locate the needed files:

1. Specify the base directory relative to which all of the needed Java classes will be referenced (here, "i:\Java\Projects\Animations"). You may select either Class-type, Archive-type or "All". Here, the panel shows a collection of archive (.jar) and class (.class) files as well as a folder containing graphic images for the applet.
2. Select the individual class (.class), archive (.jar) or source (.java) files that constitute the agent in the left panel and click Add to add them to the panel on the right. Clicking "Add All" moves every file on the left to the right. Their paths will be relative to the base directory. You can re-order files in the selected list with the arrows, or remove them with either the Clear or Clear All buttons.
3. When all needed files for that agent have been selected, click OK.
4. Notes now imports all the needed files into the current database. The displayed files are not directly editable, but they can be re-imported (see below). As mentioned before, you can attach the Java source files (.java) as well for housekeeping purposes, but Notes does not do anything directly with these files.

The process for modifying Java agents is very similar to the one for modifying Java applets:

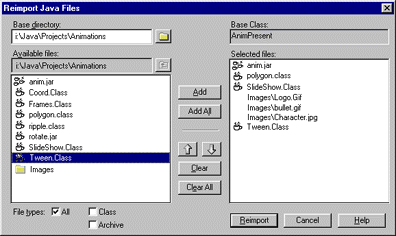

1. Click "Reimport Class Files" to bring up the file dialog. You may selectively replace any or all files shown in the list with more current copies of the same classes. Or, you may add new classes. Here, we have removed the "ripple.class" and added the "tween.class."

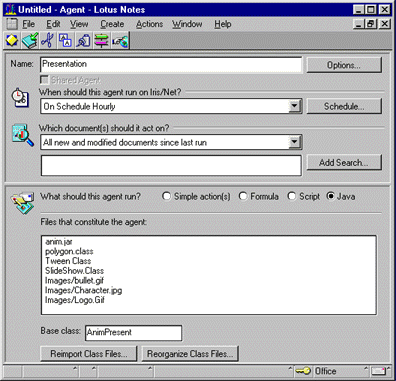

   When you click OK, the new agent files list is displayed in the design pane:


2. Click "Reorganize Class Files" to delete and/or reorder files in the list. The order is important, since the Java Virtual Machine searches for class files in the order they are specified. If a class file invokes another file at run-time that has not already been located, an error will result. Here, we have used the "up arrow" icon to promote the "tween.class" between the "polygon.class" and the "SlideShow.class."



   Again, when you click OK, the reorganized agent files list will be displayed in the design pane:
