When you develop for the Web, keyword lists begin to pose several challenges, especially if you have several keyword lists on your form and want to build the choices for fields based on previous answers. You can use the field properties “Refresh fields on keyword change” and “Refresh choices on document refresh” to have Domino rebuild the keyword lists. However, these features cause extra traffic on the server, cause the screen to jump around, and can cause other problems with JavaScript on your page.
In part one of this article series, we walked through how to build keyword lists on the Web using JavaScript and the Notes @formula language. We used a hidden iframe to load a Domino form that performed @DBColumn and @DBLookup functions to build our keyword lists. To summarize this technique, we followed these steps:
- Include a hidden iframe on our page.
- Use JavaScript to load a new page into the iframe when the user makes a selection in a keyword list.
- Get our lookup value from the query string and perform a database lookup using that value.
- Use JavaScript to build the next keyword list or to fill in a field based on the database lookup.
In this installment, we look at how to use a LotusScript agent to build our keyword lists. Finally, we examine how to build our keyword lists by accessing a relational database. This article assumes that you are an experienced LotusScript programmer with knowledge of JavaScript.
Building keyword lists using LotusScript
Let’s assume that in our application, we want the user to select a customer name from a drop-down list. Because our customer database has several thousand customer names in it, we’ve decided to let the user type in part of the name. The system then performs a full-text search for all customers containing that name and the resulting list of names is included in our drop-down list. The user then picks the actual customer name from that list. The following screen shows our lookup form.

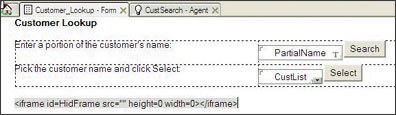

The form uses two fields: PartialName and CustList. The PartialName field is a text field in which you can enter a portion of the customer’s name, then click the Search button to retrieve the list of names. The CustList field is a drop-down field from which you can choose a customer name.
To perform the full-text search after the user types in part of the name in the PartialName field, we use LotusScript to create a search agent that we call CustSearch. (Note that we could also do the same using Java.) The Search button next to the PartialName field has the following JavaScript code:
pname=document.all.PartialName.value;
hidframe = document.all.HidFrame;
hidframe.src = "/" + thisdbname + "/CustSearch?OpenAgent&pname=" + pname;
Line 1 gets the values of the text entry field. Line 2 sets a reference to our hidden frame on the page. Line 3 then sets the src property of the hidden iframe to a URL that calls the CustSearch agent in our database. When this line executes, the browser launches this URL in the hidden iframe, which causes the agent to execute. The JavaScript variable thisdbname is set in the HTMLHead on the form, so it is a global variable.
The CustSearch agent
The CustSearch agent does most of the work in our customer search application. The complete LotusScript code is available in a sidebar, but we break the code into chunks to describe it. (See the sidebar Agent security for a brief introduction to security concerns when running agents on the Web.)
In the following code snippet, the first six lines are standard DIMs that define the objects we use in the agent. Line 7 retrieves the current database object, and line 8 retrieves the document context for our agent. The document context for an agent provides the standard CGI variables, such as Query_String_Decoded, defined as fields on the Notes document. On line 10, we grab the Query_String_Decoded value from the Notes document. The query string contains the text the user typed before hitting the search button. Line 11 uses the LotusScript function StrRight to parse the query string and to return the text after the equals sign.
Sub Initialize
Dim s As New NotesSession
Dim db As NotesDatabase
Dim note As NotesDocument
Dim custNote As NotesDocument
Dim coll As NotesDocumentCollection
Set db = s.CurrentDatabase
Set note = s.DocumentContext
'get the customer name from the querystring
qs = note.Query_String_Decoded(0)
pname = Strright(qs, "=" ) 'get the string to the right of the equal sign
Now we have the text the user wants to use for the search. On line 12, we define a string to contain the query for our full-text search. In this case, we search for documents in which the field CustName is like the text entered on our search form. Line 13 issues the FTSearch command using our query and several standard full-text search options. Finally, line 14 gets the first document returned by the ftsearch method.
query = "[CustName] Like " & pname
Set coll = db.Ftsearch(query, 0, FT_SCORES, FT_FUZZY + FT_STEMS)
Set custNote = coll.GetFirstDocument
Up to this point, we haven’t done anything but write standard LotusScript code. Now we need to have our agent generate JavaScript code to fill in the CustList keyword on our Web page. Line 15 begins this by printing the <script> tag. When an agent runs from a Web browser, as ours does, the print statement sends output to the Web page. The <script> tag tells the browser to interpret the following code as JavaScript until it finds a </script> tag.
The first thing our JavaScript code has to do is clear out any old values from the keyword list. Line 17 sets a JavaScript object to the options object from the Web page. Lines 18 through 20 are a For loop that deletes each exiting option in the option object.
Print | oldcustList = parent.document.all("CustList").options;|
Print | for(x=oldcustList.length-1; x>=0; x--){|
Print | oldcustList.options[x] = null;;|
Print | }|
In the following code snippet, line 22 begins a Do…While loop, getting one document from our search results during each iteration of the loop. For each search results document, we get the value of the CustName field on line 23. Line 25 begins the next set of print statements, so we are again writing JavaScript code to the browser. Line 25 creates a new option object on the page. Line 26 adds this new option object to our list options in the keyword list. Line 27 writes the JavaScript code to set the text of the keyword option to the value of the CustName field for the document. Line 28 writes the JavaScript code to set the value of the keyword option to the value of the CustName field for the document. At this point, the keyword list has grown by one entry.
Do While Not(custNote Is Nothing)
custName = custNote.CustName(0)
'add the new option
Print | var oOption=parent.document.createElement("OPTION");|
Print | oldcustList.options.add(oOption);|
Print | oOption.innerText="| & custName & |";|
Print | oOption.value="| & custName & |";|
Lines 30 and 31 get the next document from our search results and continue the loop. For every document that our search found, the JavaScript code adds an option to our keyword list using the customer name as the entry.
Set custNote = coll.GetNextDocument( custNote)
Loop
Finally, line 33 prints out the closing </script> tag, and our agent’s execution ends. After the agent ends, the Web page in our hidden iframe contains the JavaScript to build our customer name keyword list.
Print "</script>"
End Sub
The JavaScript executes when the page finishes loading. Below is the source code for the page generated by our agent. Notice that the lines that set the .innerText (what the user sees) and .value (the data that is submitted, just like an alias in Notes) now contain data from the documents found using FTSearch.
<html>
<head>
</head>
<body text="#000000">
<script>
oldcustList = parent.document.all("CustList").options;
for(x=oldcustList.length-1; x>=0; x--){
oldcustList.options[x] = null;;
}
var oOption=parent.document.createElement("OPTION");
oldcustList.options.add(oOption);
oOption.innerText="Marvel Industries";
oOption.value="Marvel Industries";
var oOption=parent.document.createElement("OPTION");
oldcustList.options.add(oOption);
oOption.innerText="Mark Polly";
oOption.value="Mark Polly";
</script>
</body>
</html>

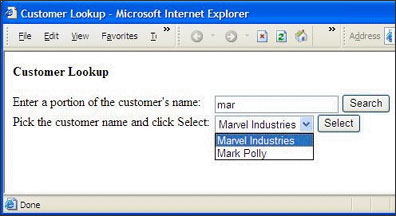

Our customer search Web page now contains our customized keyword list, as shown.
At this point, we now have a way to use LotusScript to dynamically build our keyword lists based on the results of a full-text search. As we mentioned, you could also use a Java agent to accomplish the same goal.
Integrating relational data into keyword lists
Now that we know we can call an agent to build a keyword list for us, why not extend this concept to include data from a relational database? An agent can easily access relational data using LSX and ODBC. We can also use Java and JDBC to access relational data. In our next example, we build on our LotusScript agent to access our customer list from DB2.
We start with the same concepts as above. Our customer list is too big to include in the keyword list, so we ask the user to narrow down the choices by giving us text to use in a search. Our customer search form is the same as shown previously. Our search button’s JavaScript code looks nearly the same, except we call a new agent, RDBCustSearch:
pname=document.all.PartialName.value;
hidframe = document.all.HidFrame;
hidframe.src = "/" + thisdbname + "/RDBCustSearch?OpenAgent&pname=" + pname;
The RDBCustSearch agent
Just as before, our RDBCustSearch agent is a LotusScript agent. The complete code example is available in the sidebar, but to describe the code, we’ve broken it down into chunks.
The first 20 lines of our agent are very similar to the previous example. We DIM our variables and objects, get the session and document context, and then parse out the Query_String_Decoded data.
Sub Initialize
Dim s As New NotesSession
Dim db As NotesDatabase
Dim note As NotesDocument
Dim custNote As NotesDocument
Dim coll As NotesDocumentCollection
Dim con As ODBCConnection
Dim qry As ODBCQuery
Dim res As ODBCResultSet
Dim dataSource As String
Dim userName As String
Dim password As String
Dim SQLStmt As String
Set db = s.CurrentDatabase
Set note = s.DocumentContext
'get the customer name from the querystring
qs = note.Query_String_Decoded(0)
pname = Strright(qs, "=" ) 'get the string to the right of the equal sign
On lines 21-23, we establish our ODBCConnection, ODBCQuery, and ODBCResultSet objects. Lines 24-26 set variables that are used to connect to the database. Then line 28 attempts to connect to the database using the datasource, user ID, and password values. If our connection succeeds, then on line 31 we connect our query object to the database.
Set con = New ODBCConnection
Set qry = New ODBCQuery
Set res = New ODBCResultSet
dataSource = "CUSTDB"
userName = "MPOLLY"
password = "test"
If Not con.ConnectTo(dataSource, userName, password) Then
Messagebox "Could not connect to " & dataSource
Else
Set qry.Connection = con
End If
Lines 34-37 define the SQL statement we need to query our DB2 database. In this SQL, we ask for the Cust_Nm field when that field is "like" the value we parsed from the query string. Lines 39-41 connect our SQL statement to our query object, and then execute the query. Results of the query are returned in the res object. If there is no data returned, then we exit our agent on line 43. If this happens, the keyword list in our form remains unchanged.
SQLStmt = "SELECT LTRIM(TRANSLATE(B.CUST_NM, '', '*')) AS CUST_NAME" &_
"FROM CUSTDB.EDW00T.VRPM_CUST_DIM B " &_
"WHERE B.CUST_NM LIKE '*" & pname & "%' OR B.CUST_NM LIKE '" & pname & "%' " &_
"ORDER BY CUST_NAME"
qry.SQL = SQLStmt
Set res.Query = qry
res.Execute
If Not(res.IsResultSetAvailable) Then ' No matches were found exit
Exit Sub
End If
When we do get results, we start printing out our JavaScript statements on line 46. The <script> tag tells the browser that JavaScript will follow. Just as in our LotusScript example, we first want to delete any old entries in our keyword list. Line 48 sets our oldcustList object to the keyword object on our page. Lines 49-51 go through a For loop and delete all the old entries by setting each object to null.
Print "<script>"
'delete current options in the keyword list
Print | oldcustList = parent.document.all("CustList").options;|
Print | for(x=oldcustList.length-1; x>=0; x--){|
Print | oldcustList.options[x] = null;;|
Print | }|
On line 53, we perform a Do loop. This loop runs until we reach the end of our result set (line 63). The first thing we do is retrieve the next row in our result set (line 54), which is record 1 the first time through the loop. On line 57, we create a new option object on our search page. On line 58, we add that new option to our keyword list. Next, we set the text displayed in the keyword list using the .innerText property and set the value property. The value property works like an alias on a Notes form. After all the data from the results set has been processed, we close the <script> tag on line 65.
Do
res.NextRow
custName = res.GetValue(Cust_Name)
'add the new option
Print | var oOption=parent.document.createElement("OPTION");|
Print | oldcustList.options.add(oOption);|
Print | oOption.innerText="| & custName & |";|
Print | oOption.value="| & custName & |";|
Loop Until res.IsEndOfData
'close the javascript tag
Print "</script>"
End Sub
Refer to the previous screen to see what our page looks like with our Keyword list filled in after we perform a search.
Summary
Keyword lists are very powerful tools in our Web applications. Without them, users can enter bad data into the system. With them, we ensure good data is created from the beginning. However, because of HTML’s stateless condition, it is difficult to build keyword lists using data entered on a form or to build them from other keyword lists on the page. The techniques we’ve outlined provide a powerful set of tools to let you build dynamic keyword lists on the Web just as you would in the Notes client.
